myCNC EtherCAT controller
myCNC MST-01 EtherCAT Master unit
| myCNC-MST01 EtherCAT Master unit specifications | |
|---|---|
| Servo Loop time | 250 us |
| Power supply | 24V DC |
| Cooling | Passive |
| Connection to Host PC | LAN |
Note:

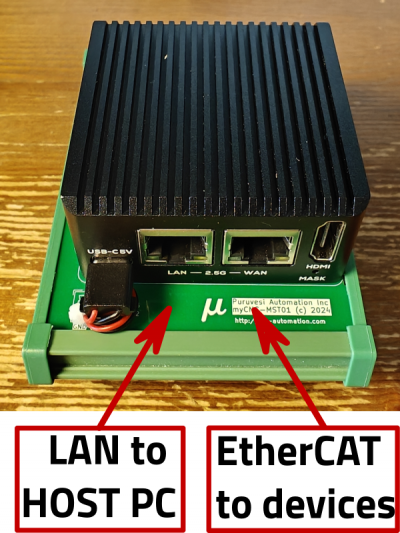

myCNC MST01 LAN/EtherCAT connectors view

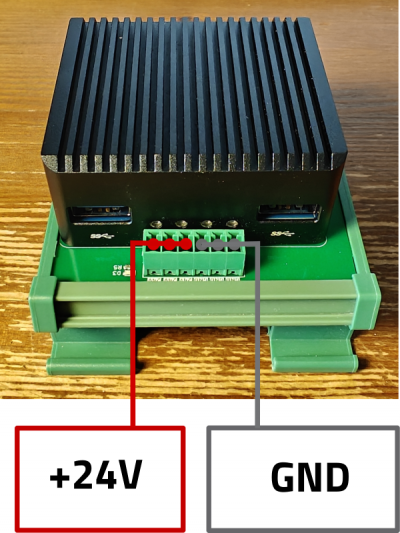

myCNC MST01 Power connector view

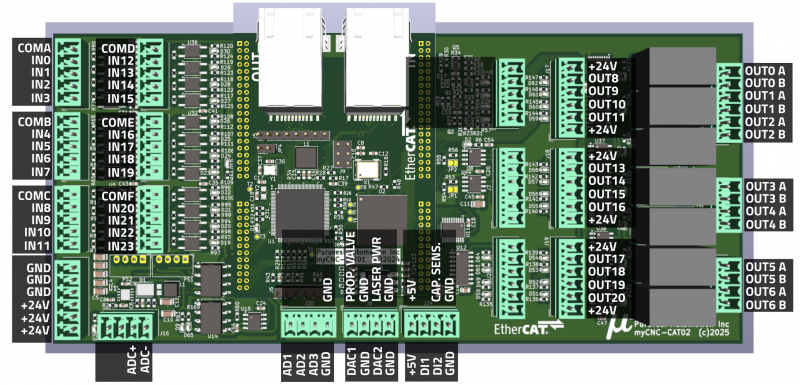

myCNC CAT02 EtherCAT IO unit
| myCNC-CAT02 EtherCAT IO unit specifications | |
|---|---|
| Loop time | 250 us |
| Power supply | 24V DC |
| Binary inputs | 24x galvanic isolation, PNP/NPN sensor compatible |
| Binary outputs | 7 relay outputs, 17 open collector outputs |
| PWM outputs | 2, PNP, 24V range |
| RS485/RS422 | 1x RS485 for custom applications |
| Communication | EtherCAT Slave |
